고객들의 가치를 창출합니다. 완전성과 윈-윈.
 |
| 원래 장소: | 중국 |
| 브랜드 이름: | Junqi |
| 인증: | CE,ROHS, UL |
| 모델 번호: | JP400S-24V |
| 최소 주문 수량: | 2 개 PC |
|---|---|
| 가격: | USD180~usd200/pc (Negotiable) |
| 포장 세부 사항: | 수출 스위트 |
| 배달 시간: | 확인된 바 |
| 지불 조건: | T/T, PayPal |
| 공급 능력: | 1000pcs/월 |

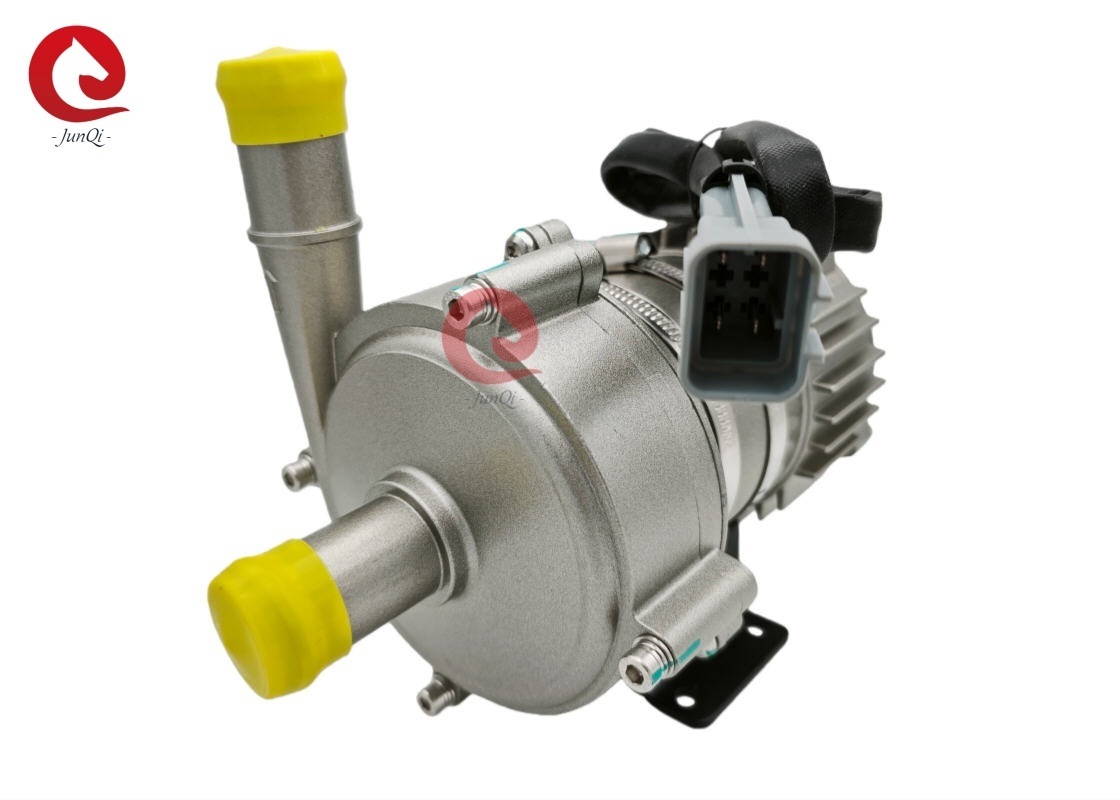

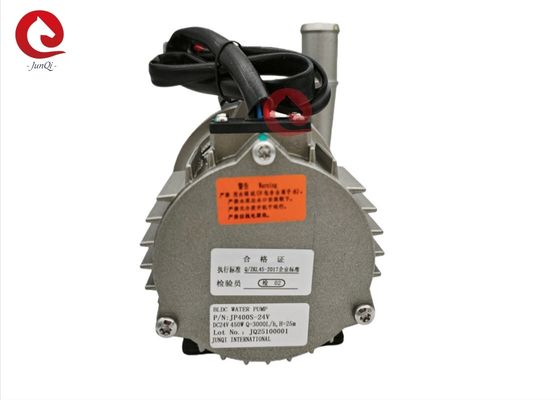

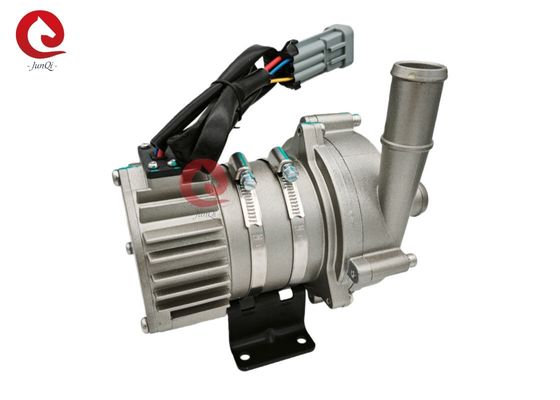

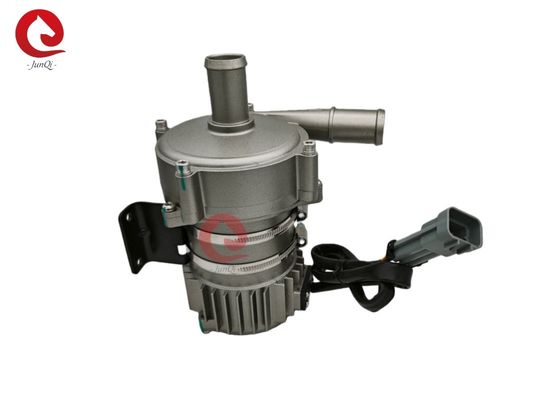

| 제품명: | 전자적 냉각제 물 펌프 | 모델: | JP400S-24V |
|---|---|---|---|
| 작동 전압: | 18~32VDC | 정격 흐름: | 3000L/h |
| 정격 리프트: | 25m | 정격 출력: | 450W |
| 출구/입구: | 25mm | 애플리케이션: | 전기 자동차, 전기 버스, 전기 트럭, 연료 전지 냉각, 상업용 차량 배터리 |
Water Pump features:
♦ Positive and negative electrode misconnection protection function;
♦ Soft start protection, small starting current;
♦ DC brushless motor high reliability, low thermal power, motor efficiency up to 90% energy saving better;
♦ Low noise, long service life.
Technical Parameters:
| JP400S-24V | |
| Item | Description |
| Rated Voltage | DC24V |
| Rated Currrent | ≤20A |
| Operating voltage | DC18-32V |
| Rated Power | 450W |
| Working Environment | -40~85℃ |
| Working Medium | 50% glycol aqueous solution |
| Protection level | IP68 |
| Working noise | ≤60dB ( Distance 1m) |
| Working life | ≥20000h |
| Weight | 2.8kg |
| Protection function | Blocked rotation, reverse connection, under voltage, over voltage, over current, over temperature, idling. |
Working Performance curve:
Dimensions:
Application:
Commerical Vehicle Battery Energy Storage Battery Vehicle Thermal Management Data Center
Thermal Management Liquid Thermal Management Liquid System
Cooling Systme Cooling System
FAQ:
Q:How long is the lead time of orders?
A:Lead time : 4 weeks after receive the deposit
Q:What is your trade Assurance?
A:100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount.
Q: What’s Moq?
A: 5PCS. Small Order Welcome.
Q:Do You Make Customized Product?
A:Yes,We Accpet customized .
Q: What should I do if I'm not satisfied with your product?
A: If there are defects in its quality, we can exchange a good one for you.
Generally, this problem is rare.
Q:What is the payment term?
A:T/T and Paypal is used more,please contact us for details
Q:What is the quality level of your product?
A:We produce good quality, refuse to produce low quality.
For more product information, please feel free contact with us via email: ivanzhu@junqitrading.com
